Water vapour impermeable vapour barrier paper is a kraft paper laminate made of aluminium and polyethylene that prevents water vapour from entering structures and insulation. Value aluminium paper is tough and highly resistant to mechanical stress and moisture.

PE aluminium paper is used as an internal vapour barrier in damp or high-tightness areas such as saunas. The value aluminium paper uses long-fibre kraft paper, which is more ductile and more resistant to mechanical stress and moisture. Seams and penetrations must be taped to ensure tightness.

TECHNICAL SPECIFICATIONS

• roll width: 1,25 m
• roll length: 24 m
• material thickness: 0,12 mm
• roll size: 30 m²
• roll weight: 3,4 kg
• colour: aluminium/brown
• Material: aluminium and polyethylene laminated kraft paper
• use: as an internal vapour and air barrier in damp or high-tightness areas
• reaction to fire (EN 13984:2013): class F
• Water vapour permeability when aged against alkalis (EN 13984:2013): >4530 / approved
• Impact resistance (EN 13984:2013): NPD
• tensile strength in longitudinal direction | in cross direction (EN 13984:2013): >423 N/50mm | >193 N/50mm
• elongation at break in the longitudinal direction | transverse direction (EN 13984:2013): >2,1 % | >5,9 %
• Nail shank tensile strength in longitudinal direction | transverse direction (EN 13984:2013) >15,0 N | >17,9 N
• Temperature resistance: -40 °C to + 140 °C

PE-ALUMINIUM PAPER INSTALLATION

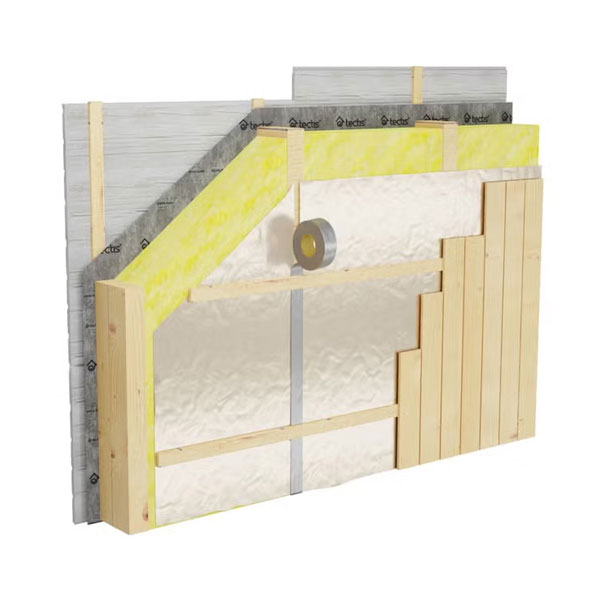

PE aluminium paper is installed on the side of the structure where the partial pressure of water vapour is the highest. The aluminium surface remains facing the air gap or warm space.

The aluminium paper is fixed parallel to the frame, either by stapling or nailing it to the frame.
